HPE6-A41 Online Practice Questions and Answers

Refer to the exhibit.

What should the network administrator do to permit Switch-1 to route traffic from a client in 10.1.11.0/24 to a client in 10.1.12.0/24?

A. Enable proxy ARP.

B. Enable IP routing.

C. Configure a static route to 10.1.11.0/24 and a static route to 10.1.12.0/24.

D. Enable OSPF routing on VLAN 11 and on VLAN 12 in the same area.

A network administrator configures MSTP on an ArubaOS switch. The administrator wants to ensure that this switch is always the root for instance 1.

What should the administrator do to accomplish this?

A. Specify priority 15 for spanning tree instance 1.

B. Specify spanning tree cost 0 on all switch ports that connect to other switches that use instance 1.

C. Specify priority 0 for spanning tree instance 1.

D. Specify spanning tree cost 15 on all switch ports that connect to other switches that use instance 1.

Refer to the exhibit. Exhibit 1.

Exhibit 2.

The routing configuration must support this behavior:

Server 1 and Server 2 communicate over Link 1 when Link 1 is up.

If Link 1 fails, Server 1 and Server 2 can continue to communicate over the path through Switch-3.

What must the network administrator change to meet these criteria?

A. On Switch 3, add a route to 192.168.2.0/24 through 192.168.1.9 and a route to 192.168.3.0/24 through

192.168.1.5.

B. On Switch-1, Switch-2, and Switch-3, change the next hop in each static route to specify an IP address that exists on that switch.

C. On Switch-1, raise the administrative distance for the second route to 192.168.3.0/24; on Switch-2, raise the administrative distance for the second route to 192.168.2.0/24

D. On Switch-1, add a route to 192.168.1.8/30 through 192.168.0.3; on Switch-2, add a route to 192.168.1.4/30 through 192.168.1.1; on Switch-3, add a route to 192.168.1.0/30 through 192.169.1.4.

E. On Switch-1, add a route to 192.168.1.8/30 through 192.168.1.2; on Switch-2, add a route to 192.168.1.4/30 through 192.168.1.1; on Switch-3, add a route to 192.168.1.0/30 through 192.168.1.4.

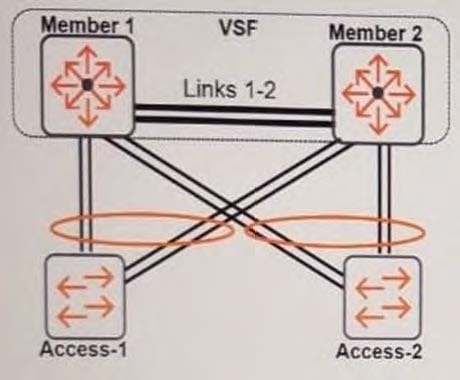

Refer to the exhibit.

Based on the topology shown in the exhibit, which symptom does a network administrator see if the ArubaOS switches are in their factory default states?

A. Ports places in a blocking state

B. Mislearned MAC addresses

C. TTL expired in transit

D. Layer 3 loop

A company has two ArubaOS switches, Switch1 and Switch2. Switch1 will be the commander for a new Virtual Switching Framework (VSF) fabric. Switch2 is a new switch that will be the standby member. The network administrator wants to configure the proper settings on the standby member interface before the standby member joins the fabric.

What should the administrator do before the switches are joined in the VSF fabric?

A. Configure the interface settings on Switch2. Then enable VSF on Switch2.

B. Enable VSF on Switch2. Then configure the interface settings on Switch2.

C. Provision member2 on Switch1. Then configure the member2 interface settings on Switch1.

D. Provision member2 on Switch1 and member1 on Switch2. Then configure the member2 interface settings on Switch2.

Refer to the exhibit.

Assume that Student A's ARP table is empty. Student A prepares to send an FTP packet to FTP Server B and needs to discover the proper destination MAC address.

For which IP address does Student A send an ARP request?

A. 10.1.2.2

B. 10.1.10.1

C. 10.1.10.87

D. 10.1.20.1

Refer to the exhibit.

Prior to implementing OSPF on the network, an ArubaOS switch had the IP routing table shown in the exhibit. The network administrator then sets up OSPF in the network. The switch calculates these OSPF routes to 10.1.20.0/24:

Through 10.1.0.1 with cost 3 and administrative distance 110 Through 10.1.0.2 with cost 3 and administrative distance 110

How does the way the switch handles traffic destined to 10.1.20.0/24 change with the introduction of OSPF?

A. The switch stops sending the traffic to 10.1.0.3 and instead load balances it to 10.1.0.1 and 10.1.0.2.

B. The switch no longer drops this traffic and instead load balances it to 10.1.0.1 and 10.1.0.2.

C. The switch continues to send the traffic to 10.1.0.3, but it now has backup routes for the traffic in case the connection to 10.1.0.3 fails.

D. The switch no longer drops this traffic and instead sends it to 10.1.0.1.

A network administrator creates a local user account and assigns that account to the Level-9 authorization group. The administrator tests the group assignment and is able to successfully log in with the local user credentials. However, the administrator is able to enter all the commands rather than only the commands permitted by the Level-9 group.

How can the administrator resolve this issue?

A. Set an operator password.

B. Set the command access level to enable.

C. Set the command access level to all.

D. Set command authorization to local.

What often happens when a Layer2 broadcast domain has a loop?

A. Some switch-to-switch ports take the MSTP alternative role and stay in that role.

B. In the switch MAC tables, the MAC addresses frequently move from one port to another.

C. Switches automatically raise their MSTP configuration revision level by one.

D. In the switch routing tables, some routes converge with new metrics.

Which security benefit does SNMPv3 offer that SNMPv2 does not offer?

A. SSL encryption

B. Scopes

C. Data confidentially

D. RADIUS groups
