HP2-Z34 Online Practice Questions and Answers

Refer to the exhibits Exhibit 1 This data center topology is being set up to use SPBM. VMs in the same subnet should be able to communicate at Layer 2 and be isolated at Layer 2 from other subnets. VS110010 was created for VLAN 10 as shown in Exhibit 2. The administrator is configuring a service instance for the VLAN 10 traffic on Switch 1 interface Ten1/0/1.

What is the correct encapsulation mode?

A. s-vid101

B. ta99ed

C. default

D. s-vid10

Which advantage does a VPLS solution offer over a simple MPLS Layer 2 VPN solution?

A. provides data integrity and privacy for the company traffic

B. provides MAC learning for VLANs extended across the MPLS region

C. allows for a hub and spoke pseudo wire (PW) configuration instead of a full mesh configuration

D. extends Layer 2 connectivity across an IP network that uses non-Ethernet media

Multiple data centers connect over an HP EVI network. IPv4 servers in the data centers use Microsoft network load-balancing and need to send multicasts to each other across EVI links.

They do not use IGMP to join the multicast groups. What must the administrator do?

A. Configure selective flooding for the multicast group addresses on the EVI tunnel interfaces

B. Enable Protocol Independent Multicasting (PIM) on the EVI tunnel interfaces.

C. Enable IGMP proxy on the EVI tunnel interfaces. l^

D. Enable Multicast Learner Discovery (MLD) on the EVI tunnel interfaces.

Refer to the exhibit An administrator is creating the EVI network shown in the exhibit Switches 1 and 2 are configured as ENDP servers. and Switch 3 is configured as an ENDP client to the ENDP servers. Which configuration is correct for the EVI tunnel interface on Switch 3?

A. The source IP address is the switch router ID; the addresses for switches 1. 2. and 4 need to be set as destinations

B. The source IP address is the address on the connection to the service provider; no other destination IP addresses need to be set.

C. The source IP address is the address on the connection to the service provider; the addresses for switches 1, 2, and 4 need to be set as destinations

D. The source IP address is the switch router ID; no other destination IP addresses need to be set.

An HP IRF virtual switch with two members is implementing TRILL. The administrator wants to ensure that the master can fail without causing topology changes or changes in forwarding tables in the TRILL region. Which setting helps support this requirement?

A. Graceful Restart for TRILL

B. Bidirectional Forwarding Detection (BFD) Multi-Active Detection (MAD) for the IRF link

C. calculation of at least two trees

D. non-stop-forwarding for TRILL

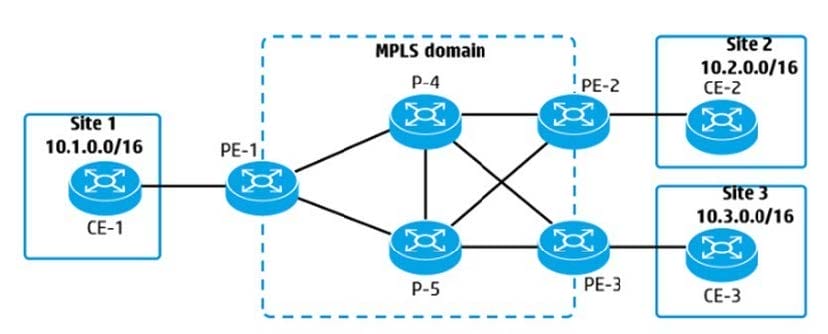

Refer to the exhibit An administrator is establishing an MPLS domain to allow communication between 10.1.0.0/16.10 2 0 0/16. and 10.3 0.0/16. The solution will use OSPF routing and LDP. On which PE and P devices should these protocols be configured?

A. All P and PE devices should be configured with MPLS, but only P devices need OSPF and only PE devices need LDP.

B. All P and PE devices should be configured with MPLS, LDP. and OSPF.

C. All P and PE devices should be configured with MPLS, but only PE devices need OSPF and LDP.

D. All P and PE devices should be configured with MPLS and LDP. but only PE devices need OSPF.

What is an appropriate situation for configuring an interface as a silent TRILL access port?

A. The interface connects to another TRILL switch, which has a higher DRB priority than this switch

B. The interface connects to a downstream non-TRILL switch, which is connected to another TRILL switch. The administrator does not want the interface to carry encapsulated TRILL traffic.

C. The interface connects to a downstream non-TRILL switch, which is connected to another TRILL switch The administrator wants the interface to provide a backup path for encapsulated TRILL traffic

D. The interface connects directly to server NICs. and it is a bridge aggregation on an IRF virtual device.

What is the correct use case for implementing priority flow control (PFC) on a switch port?

A. The port carries data and storage traffic. PFC should be applied to the priority queue that is assigned to storage traffic.

B. The port carries multimedia voice and video traffic PFC should be applied to the queues with a lower priority than multimedia traffic

C. The port carries data and storage traffic PFC should be applied to the queues with a lower priority than storage traffic.

D. The port carries multimedia voice and video traffic PFC should be applied to the priority queue that is assigned to multimedia traffic.

Refer to the exhibit An MPLS Layer 2 VPN is being implemented between Sites 1 and 2. The administrator wants PE-1 and PE-2 to set up the Virtual Circuit (VC) dynamically by using the Martini method. What is required to accomplish this goal?

A. redistribution of Border Gateway Protocol (BGP) routes into Open Shortest Path First (OSPF) on PE-1 and PE-2

B. remote LDP session between PE-1 and PE-2

C. iPSec tunnel between PE-1 and PE-2

D. VPN instance with the same route distinguisher (RD) on PE-1 and PE-2

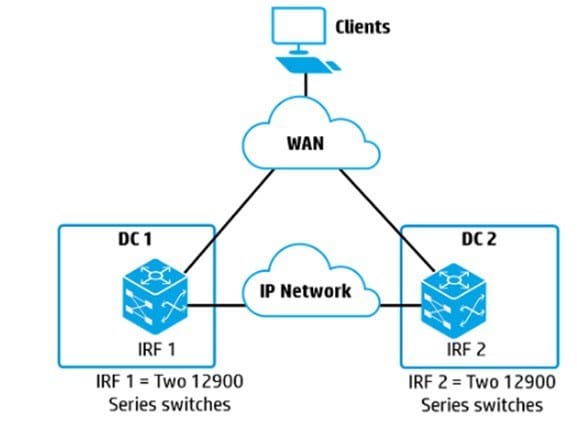

A company is adding a second data center for disaster recovery. The data centers connect over a link supplied by a service provider with an IP network. The company wants a solution that extends Layer 2 connectivity between the data centers and does not require any special services from the service provider, such as MPLS.

What can meet the needs for this design?

A. QEVI

B. lRF

C. VPLS

D. SPBM
