E20-526 Online Practice Questions and Answers

Correct Answer: A

Second write workload IOPS = 2 GB/s divided by 128 kB = 2 x 1,073,741,824 / (128 x 1,024) = 16384

IOPs.

Total IOPS required would be 150,000, from the first workload, plus 16384, totaling 166384.

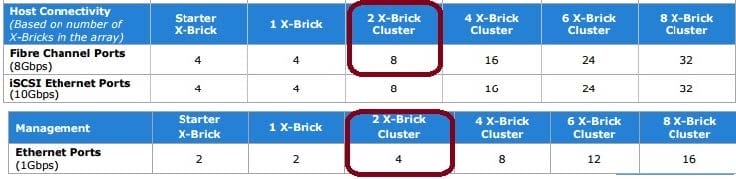

A 2 X-Brick cluster provides 300K Read/write IOPS so it would be adequate.

Storage capacity and performance scale linearly, such that two X-Bricks supply twice the IOPS, four X-

Bricks supply four times the IOPS, six X-Bricks supply six times the IOPS and eight X-Bricks supply eight

times the IOPS of the single X- Brick configuration.

Note: Choose an EMC XtremIO system and scale out linearly by adding more XtremIO X-Bricks.

References: https://store.emc.com/en-us/Product-Family/EMC-XtremIO-Products/EMC-XtremIO-All-FlashScale-Out-Array/p/EMC-XtremIO-Flash-Scale-Out

Correct Answer: B

From the menu bar, the Inventory icon is to be clicked to display the Inventory workspace. This workspace takes the place of the Hardware workspace in earlier versions of the XtremIO GUI. With the All Clusters tab selected, we can see a list of all the hardware elements in the managed clusters.

Note: With time, additional clusters can be added to a deployed XMS. In addition, a cluster can be easily moved from one XMS to another. All management interfaces (GUI/CLI/REST) offer inherent multi-cluster

management capabilities.

Multiple cluster management is supported from version 4.0 and up.

References:

https://community.emc.com/community/connect/everything_oracle/blog/2015/08/27/xtremio-40-multi-arraymanagement

Correct Answer: B

resxtop is a command to retrieve performance statistics. This command is included in vSphere command line interface (CLI) and is part of the vSphere Management Assistant (vMA), which is an equivalent to esxtop that runs only inside an ESX service console.

Incorrect Answers:

A: esxtop runs only inside an ESX service console.

D: Use the iostat command to report statistics about disk input and output, and to produce measures of throughput, utilization, queue lengths, transaction rates, and service time.

References: www.emc.com/collateral/TechnicalDocument/docu5265.pdf, page 22

Correct Answer: A

The EMC RecoverPoint family provides cost-effective, local continuous data protection (CDP), continuous remote replication (CRR), and continuous local and remote replication (CLR) that allows for any-point-intime data recovery and a new "snap and replicate" mechanism for local and remote replication (XRP).

Splitter-based replication, using VPLEX RecoverPoint splitter-based replication provides synchronous replication, continuous replication with fine recovery granularity (journal based), and replication for active-active datacenters.

References: Introduction to the EMC XtremIO STORAGE ARRAY (April 2015), page 52

Correct Answer: D

The system's Command Line Interface (CLI) allows administrators and other system users to perform

supported management operations. It is preinstalled on the XMS and can be accessed using the standard

SSH protocol.

PuTTY is an SSH and telnet client.

The standard TCP port 22 has been assigned for contacting SSH servers.

You can login using the builtin xmsadmin account.

References: Introduction to the EMC XtremIO STORAGE ARRAY (April 2015), page 50

Correct Answer: C

The EMC VPLEX family is the next-generation solution for data mobility and access within, across and between data centers. VPLEX supports two configurations, local and metro. In the case of VPLEX Metro with the optional VPLEX Witness and Cross-Connected configuration, applications continue to operate in the surviving site with no interruption or downtime. Storage resources virtualized by VPLEX cooperate through the stack, with the ability to dynamically move applications and data across geographies and service providers.

Incorrect Answers:

A: EMC ViPR Controller is a software-defined storage platform that abstracts, pools and automates a data center's underlying physical storage infrastructure. It provides data center administrators with a single control plane for heterogeneous storage systems.

B: The EMC RecoverPoint family provides cost-effective, local continuous data protection (CDP), continuous remote replication (CRR), and continuous local and remote replication (CLR) that allows for any-point-in-time data recovery and a new "snap and replicate" mechanism for local and remote replication (XRP). This enables replication for high-performance, low-latency applications.

D: EMC ViPR SRM provides comprehensive monitoring, reporting and analysis for heterogeneous block, file and virtualized storage environments. It enables the users to visualize applications to storage dependencies, monitor and analyze configurations and capacity growth, and optimize their environment to improve return on investment.

References: Introduction to the EMC XtremIO STORAGE ARRAY (April 2015) , page 63

Correct Answer: C

Oracle Database performs I/O on data files in multiples of the database block size (db_block_size), which is 8KB by default. The default Oracle Database block size is optimal on XtremIO. XtremIO supports larger block sizes as well. In the case of multiblock I/O (e.g., table/index scans with access method full), one should tune the Oracle Database initialization parameter db_file_multiblock_read_count to limit the requests to 128KB. Therefore, the formula for db_file_multiblock_read_count is: db_file_multiblock_read_count = 128KB / db_block_size

In our case the block size is 1 MB, so the formula db_file_multiblock_read_count is 1 MB/ 8KB = 1024/8 = 128

References: https://www.emc.com/collateral/white-papers/h13497-oracle-best-practices-xtremio-wp.pdf, page 21

Correct Answer: C

The first step is to re-install the XMS image, in the event it is a physical XMS then you may install an image

via a USB flash drive or for a virtual XMS simply deploy the provided VMware OVA image.

The following step is to upload the XMS software to the images directory of the XMS and login with install

mode ........

Once logged into the XMS console with xinstall then perform the following sequence of steps:

1. Configuration

5. Perform XMS installation only

11. Run XMS Recovery

Options to choose when running the "XMS Recovery":

References: https://davidring.ie/2015/02/20/emc-xtremio-redeploying-xms-xtremio-management-server/

Correct Answer: B

XtremIO's snapshot technology is implemented by leveraging the content-aware capabilities of the system (Inline Data Reduction), optimized for SSD media, with a unique metadata tree structure.

XtremIO leverages a proprietary flash-optimized data protection algorithm (XtremIO Data Protection or XDP), which provides performance that is superior to any existing RAID algorithm.

References: Introduction to the EMC XtremIO STORAGE ARRAY (April 2015), page 33

Correct Answer: A
