300-440 Online Practice Questions and Answers

Correct Answer: B

A fully meshed topology with SD-WAN technology, using dynamic routing and BGP as the routing protocol, meets the requirements of the company because it provides the following benefits

It allows direct and secure connectivity between any two branch offices, without the need for a central hub or intermediary devices. This reduces the latency and improves the performance of the critical business applications. It leverages SDWAN technology to optimize the traffic flow and application quality of service (QoS) across the WAN. SD-WAN can dynamically select the best path for each application based on the network conditions and policies. SD- WAN can also provide redundancy, security, and visibility for the WAN. It uses dynamic routing and BGP as the routing protocol to exchange routing information and establish connectivity between the branch offices. BGP is a scalable and flexible protocol that can support multiple address families, such as IPv4 and IPv6, and multiple routing policies, such as local preference and route filtering. BGP can also enable seamless integration with the cloud service providers (CSPs) and internet service providers (ISPs).

References :

1: Designing and Implementing Cloud Connectivity (ENCC, Track 1 of 5) (Cisco U.login required)

2: Cisco SD-WAN Design Guide

Correct Answer: AE

The correct answer is A and E because they are the IP prefixes that match the tunnel interfaces on the Cisco IOS XE router. The AWS routing options should include the local and remote IP prefixes that are used for the IPsec tunnel endpoints. The other options are either the public IP addresses of the routers or the LAN subnets that are not relevant for the IPsec tunnel configuration. References= Designing and Implementing Cloud Connectivity (ENCC) v1.0, Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services, Site-to-Site VPN with Amazon Web Services

Correct Answer: B

Security groups are a feature in AWS that allow you to control the inbound and outbound traffic to your instances. They act as a virtual firewall that can filter the traffic based on the source, destination, protocol, and port. You can assign one or more security groups to your instances, and each security group can have multiple rules. Security groups are stateful, meaning that they automatically allow the response traffic for any allowed inbound traffic, and vice versa. Security groups are essential for securing your nodes in the AWS EKS cluster, as they can prevent unauthorized access to your Mongo Atlas database or other resources.

References: AWS Security Groups Security Groups for Your VPC Security Groups for Your Amazon EC2 Instances Security Groups for Your Amazon EKS Cluster

Correct Answer: C

Option C is the correct answer because it configures the IKEv2 profile with the correct match identity, authentication, and keyring parameters. It also configures the IPsecprofile with the correct transform set and lifetime parameters. Option A is incorrect because it does not specify the match identity remote address in the IKEv2 profile, which is required to match the AWS virtual private gateway IP address. Option B is incorrect because it does not specify the authentication preshare in the IKEv2 profile, which is required to authenticate the IKEv2 peers using a pre-shared key. Option C also matches the configuration example provided by AWS and Cisco for setting up an IKEv2 IPsec site-to- site VPN between a Cisco IOS-XE router and an AWS virtual private gateway.

References:

1: AWS VPN Configuration Guide for Cisco IOS-XE

2: Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services

Correct Answer: D

The problem is that the site-list "All-Site" has a higher match sequence than the site-list "Hub", which means that the policy for "All-Site" will take precedence over the policy for "Hub" for any site that belongs to both lists. This creates a conflict

and prevents the engineer from adding a new centralized control policy in Cisco vManage. To resolve this issue, the site-list "All-Site" should be configured with a new match sequence that is lower than the sequence for site-list "Hub", so that

the policy for "Hub" will be applied first and then the policy for "All-Site" will be applied only to the remaining sites that are not in the "Hub" list.

References:

Designing and Implementing Cloud Connectivity (ENCC, Track 1 of 5), Module 3:

Cisco SD-WAN Cloud OnRamp for Colocation, Lesson 3: Cisco SD-WAN Cloud OnRamp for Colocation - Centralized Control Policies Cisco SD-WAN Cloud OnRamp for Colocation Deployment Guide, Chapter 4:

Configuring Centralized Control Policies Cisco SD-WAN Configuration Guide, Release 20.3, Chapter: Centralized Policy Framework, Section: Policy Configuration Overview

Correct Answer: C

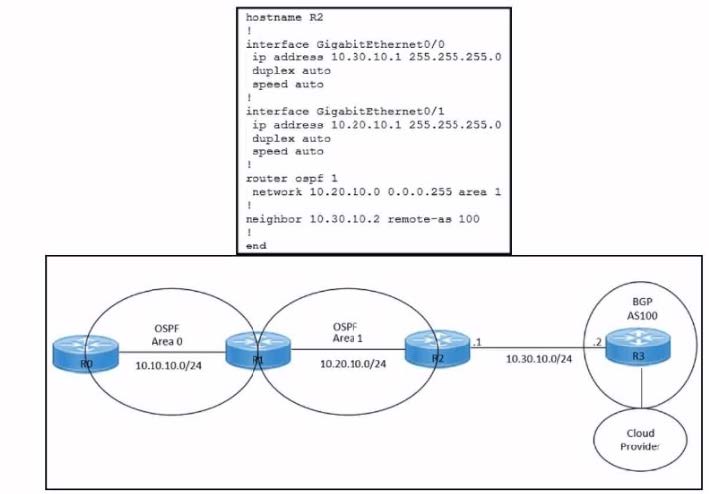

The command redistribute ospf 1 match external is missing on router R2. This command is needed to redistribute only the external OSPF routes into BGP. The external OSPF routes are those that are learned from another routing protocol or

redistributed into OSPF. In this case, the 10.0.10.0/24 network is an external OSPF route, as it is redistributed from EIGRP into OSPF on router R1. The other commands are either already present or not relevant for this scenario.

References:

Designing and Implementing Cloud Connectivity (ENCC) v1.0, Module 3:

Implementing Cloud Connectivity, Lesson 3.1: Implementing IPsec VPN from Cisco IOS XE to AWS, Topic 3.1.2: Configure BGP on the Cisco IOS XE Router Security for VPNs with IPsec Configuration Guide, Cisco IOS XE, Chapter:

Configuring IPsec VPNs with Dynamic Routing Protocols, Section: Configuring BGP over IPsec VPNs

Correct Answer:

The process of configuring a Cisco SD-WAN Cloud Interconnect with Equinix involves several steps.

Ensure that you have UUIDs for the required number of Cisco SD WAN Virtual Edge instances that you want to deploy as Interconnect Gateways: This is the first step where you ensure that you have the necessary UUIDs for the Cisco SDWAN Virtual Edge instances that you want to deploy.

Create the necessary network segments: After ensuring the availability of UUIDs, you create the necessary network segments.

Attach Cisco SD-WAN Virtual Edge to the Equinix device template: After setting up the network segments, you attach the Cisco SD-WAN Virtual Edge to the Equinix device template.

Create the Interconnect Gateway at the Equinix location that is closest to your SD- WAN branch location: Finally, you create the Interconnect Gateway at the Equinix location that is closest to your SD-WAN branch location.

References:

[Cisco SD-WAN Cloud Interconnect with Equinix]

[Cisco SD-WAN Cloud OnRamp for CoLocation Deployment Guide]

Correct Answer:

Step 1 = crypto map cisco 1 ipsec-isakmp Step 2 = set peer 192.168.10.1 default Step 3 = set peer 192.168.20.1 Step 4 = set security-association idle-time 120 default

The process of editing the settings of a site-to-site IPsec VPN connection between an on- premises Cisco IOS XE router and Amazon Web Services (AWS), and configuring IPsec to support multiple peers and failover after 120 seconds of idle time on the first entry of the crypto map named Cisco involves several steps123456. crypto map cisco 1 ipsec-isakmp: This command is used to create a new entry in the crypto map named "cisco". The "1" is the sequence number of the entry, and "ipsec-isakmp" specifies that the IPSec security associations (SAs) should be established using the Internet Key Exchange (IKE) protocol13. set peer 192.168.10.1 default: This command is used to specify the IP address of the default peer for the crypto map entry. In this case, the default peer is at IP address 192.168.10.115. set peer 192.168.20.1: This command is used to add an additional peer to the crypto map entry. In this case, the additional peer is at IP address 192.168.20.1. This allows the IPsec VPN to support multiple peers56. set security-association idle-time 120 default: This command is used to set the idle time for the security association. If no traffic is detected over the VPN for the specified idle time (in this case, 120 seconds), the security association is deleted, and the VPN connection fails over to the next peer46.

References: Configure a Site-to-Site IPSec IKEv1 Tunnel Between an ASA and a Cisco IOS Router - Cisco Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services - Cisco Community Configuring Site to Site IPSec VPN Tunnel Between Cisco Routers Configure Failover for IPSec Site-to-Site Tunnels with Backup ISP Links on FTD Managed by FMC - Cisco Does Setting Multiple Peers in a Crypto Map Also Support Parallel IPSec Connections - Cisco Community Multiple WAN Connections -- IPsec in Multi-WAN Environments | pfSense Documentation Multiple Set Peer for VPN Failover - Server Fault

Correct Answer:

Step 1 = Click Configuration, select Templates, and then select Feature Templates.

Step 2 = Click Add Template, select the device, and then click Basic Configuration.

Step 3 = Shut down the tunnel and then remove the ISAKMP profile.

Step 4 = Attach the IKEv2 profile and then run the no shutdown command on the tunnel.

The process of configuring a site-to-site IPsec VPN connection between an on-premises Cisco IOS XE router in Controller mode and AWS, and changing the IKE version from IKEv1 to IKEv2 in Cisco vManage involves several steps123. Click

Configuration, select Templates, and then select Feature Templates: This is the first step where you navigate to the Templates section in the Configuration menu of Cisco vManage1.

Click Add Template, select the device, and then click Basic Configuration: In this step, you add a new template for the device and proceed with the basic configuration.

Shut down the tunnel and then remove the ISAKMP profile: Before changing the IKE version, you need to shut down the existing tunnel and remove the ISAKMP profile that is configured for IKEv12.

Attach the IKEv2 profile and then run the no shutdown command on the tunnel:

Finally, you attach the newly created IKEv2 profile to the tunnel and bring the tunnel back up.

References:

Configuring Internet Key Exchange Version 2 (IKEv2) - Cisco Switch from IKEv1 to IKEv2 on Cisco Routers - Cisco Community Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services - Cisco Community

Correct Answer:

Enhanced Policy-Based Routing (ePBR) is used to direct packets that arrive at an interface to a specified next-hop. It is very useful in managing a large number of configured access lists more efficiently. In ePBR, the router drops the traffic packets if the next hop configured in the PBR policy is not reachable. To avoid packet loss in such scenarios, you must configure multiple next hops for each access control entry. Here are the steps to configure ePBR for IPv4 using Cisco vManage: Configure an extended ACL: This step involves defining the network or the host. For example, you can permit IPv4 traffic from any source to specific hosts. Configure a class map that matches the ACL: Class maps match the parameters in the ACLs. For instance, you can create a class map of type traffic and match it with the previously created ACL. Configure the policy map with the action to set the next hop: Policy maps with ePBR then take detailed actions based on the set statements configured. You can configure an ePBR policy map with the class map and set the next hop. Apply the service policy on the interface: Finally, you apply the ePBR policy map to the interface. For example, you can apply the policy map to a GigabitEthernet interface. References : Implementing Enhanced Policy Based Routing - Cisco Cisco Catalyst SD-WAN Policies Configuration Guide, Cisco IOS XE How to configure PBR - Cisco Community
